Biometric Access Control System
· 1:1 and 1:N authentication & Identification
· Standard 800 user 2-fingerprint database
· Central management/ enrolment via Biomatch 2007 Software
· Client /Server software
· 0.8 second finger authentication time
· Commercial access control system integration (IR Concept, Tecom Challenger via Wiegand 26bit)
· IP addressable
· 10BaseT Ethernet, RS-422, and Wiegand
indoor installations to increase security in physical access control systems. Most systems use
conventional passwords or PINs (data known), or access cards (tokens presented), but they become
vulnerable to breach if these tokens are shared, lost, or stolen. Fingerprint biometrics, however, use
physical characteristics to validate each person’s unique identity. When used for identification, or
combined with other authentication methods, the MorphoAccess intensifies security by allowing
additional layers of identity verification (data known plus a token presented plus physical
characteristics) to meet a broad range of security requirements. Matching accuracy is achieved through a
precision optical scanner and SAGEM’s leading fingerprint algorithms. Fingerprint processing is
remarkably quick for both 1:1 authentication against a contactless smart card or 1:many identification
against large databases. The MorphoAccess is well suited for a variety of physical access applications
due to its expandable database capacity, customizable operating parameters, easy interface with legacy,
existing, or commercially available access control systems, and industry standard 10BaseT Ethernet, RS-
422, and Wiegand communications. MorphoAccess is the ideal solution to increase identification, protect
valuable property, and enhance security in physical access control systems.

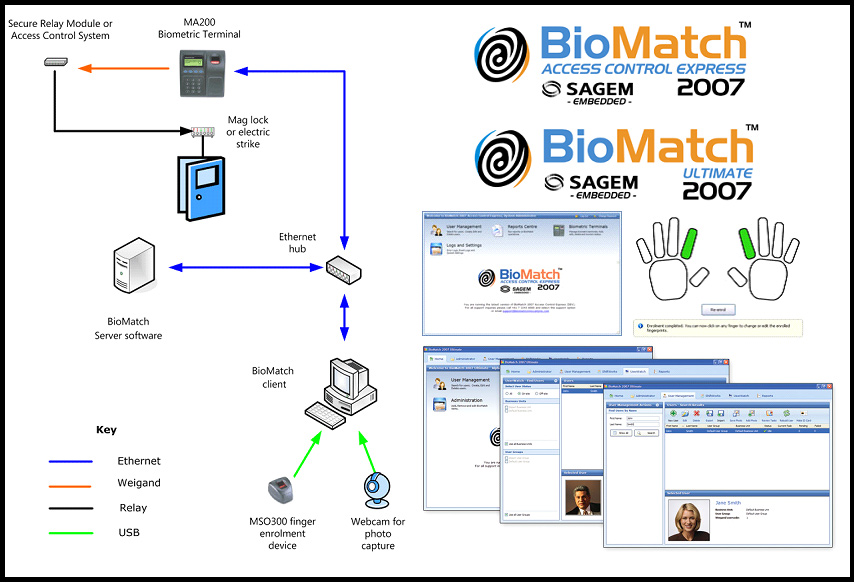

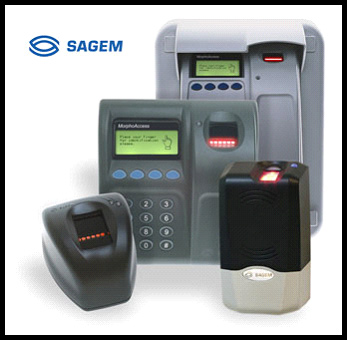

SAGEM MorphoAccess Family Products, Biomatch 2007 Software, SAGEM Morpho Access Network Diagram
|
